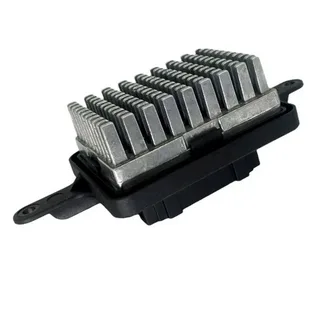

TM Barina Fan Speed Resistor: A Comprehensive Guide

The TM Barina Fan Speed Resistor is a crucial component in the vehicle’s HVAC system, and it is responsible for controlling the fan’s speed and regulating airflow inside the cabin. Without it, drivers and passengers would be stuck with a single fan speed, greatly affecting comfort levels, especially during extreme weather conditions. In this comprehensive guide, we will explore the function of the fan speed resistor, identify symptoms of potential issues, and provide instructions on diagnosing and replacing this component. Additionally, we’ll discuss preventative maintenance tips and possibilities for upgrading the fan speed resistor.

Understanding the Role of a Fan Speed Resistor

Fan speed resistors are crucial components in automotive HVAC (heating, ventilation, and air conditioning) systems. They allow for the regulation of the fan speed in vehicles. This component plays a vital role in maintaining passenger comfort by enabling the driver to adjust the airflow according to their needs.

Functionality of the Fan Speed Resistor

The fan speed resistor works by altering the electrical resistance within the circuit, thereby controlling the voltage that reaches the blower motor. By changing the voltage, the resistor effectively adjusts the fan’s speed—low resistance leads to higher speeds, while high resistance results in lower speeds. Most vehicles have a multi-speed fan system, which utilises a resistor to offer several speed settings, enhancing versatility and comfort.

Symptoms of a Failing Fan Speed Resistor

A malfunctioning fan speed resistor can lead to several issues, such as the fan only operating at one speed (usually high) or not functioning at all. Drivers may notice that certain speeds are unresponsive or that the fan fails to operate when the vehicle is started. In such cases, replacing the fan speed resistor is often necessary to restore proper functionality.

Importance of Timely Maintenance

Regular inspections of the HVAC system can help identify issues with the fan speed resistor early on. Addressing problems promptly can prevent further complications and ensure the vehicle’s climate control system operates efficiently, providing a comfortable driving experience in varying weather conditions.

Common Symptoms of a Faulty Fan Speed Resistor

A faulty fan speed resistor can significantly impact your vehicle’s climate control system, affecting the performance of the cabin fan. Understanding the symptoms of a failing resistor can help you address the issue before it leads to further damage.

An inconsistent fan speed is one of the most common symptoms of a faulty fan speed resistor. If you notice that the fan operates only at certain speeds or fails to respond to speed adjustments, it may indicate a problem with the resistor. Typically, a functioning resistor allows the fan to operate at various speeds; however, when the resistor malfunctions, you might experience a complete failure or limited speed options, such as only working at high speed.

Another telltale sign is the fan only working at one speed, often the highest setting. This occurs because the resistor cannot regulate the lower speeds, which can be uncomfortable during extreme weather conditions. If the fan is stuck on high, it can also lead to increased wear on the fan motor, causing premature failure.

Additionally, a burning smell or visual signs of damage, such as melted plastic or burnt wiring, can indicate a failing resistor. This is often caused by overheating due to excessive current flowing through the resistor. If you detect any unusual odours or see signs of damage around the resistor or wiring, it must be inspected immediately.

Lastly, if your vehicle’s climate control system is completely unresponsive, it could indicate a faulty fan speed resistor. In such cases, the entire system may require diagnostics to determine the root cause of the failure. Ignoring these symptoms can lead to more extensive repairs, so addressing them promptly is vital for maintaining a comfortable driving experience.

Diagnosing Issues with the Fan Speed Resistor

The fan speed resistor is crucial to a vehicle’s heating, ventilation, and air conditioning (HVAC) system. It controls the blower motor’s speed, allowing drivers to adjust airflow as needed. When issues arise with the fan speed resistor, various symptoms can occur that require careful diagnosis.

Common Symptoms of a Faulty Fan Speed Resistor

One of the primary signs of a failing fan speed resistor is the blower motor not operating at all or functioning only at certain speeds. For instance, if the fan only works on high speed but not on lower settings, it typically indicates a problem with the resistor. Other symptoms may include inconsistent fan speed, unusual noises from the blower, or a complete lack of airflow despite the HVAC system being turned on.

Diagnostic Steps

To diagnose a faulty fan speed resistor, inspect the vehicle’s fuse box for any blown fuses associated with the HVAC system. If the fuses are intact, check the wiring harness and connections leading to the resistor for any signs of damage or corrosion. Using a multimeter, measure the resistance across the terminals of the resistor; a significant deviation from the manufacturer’s specifications indicates a malfunction.

Replace the fan speed resistor with a new component to restore proper function if necessary. Regular HVAC system maintenance and inspections can prevent these issues and ensure a comfortable driving experience.

Replacing the Fan Speed Resistor

Replacing the fan speed resistor in your vehicle is an essential task that ensures the proper operation of your heating and air conditioning system. The fan speed resistor controls the blower motor’s speed, allowing you to adjust airflow levels inside the cabin. If you notice that your fan only operates at certain speeds or not at all, the resistor may be faulty. Here’s how to replace it effectively.

Tools and Materials Needed

Before starting, gather the necessary tools and materials. You will need a socket set of screwdrivers, a new fan speed resistor, and safety gloves. It’s also wise to consult your vehicle’s repair manual for specific instructions and the location of the resistor.

Step-by-Step Replacement Process

Disconnect the Battery:

Safety first! Always disconnect the battery’s negative terminal to prevent any electrical shorts or shocks.

Locate the Fan Speed Resistor:

The resistor is usually near the blower motor, often behind the glove box or under the dashboard. For precise locations, refer to your manual.

Remove the Old Resistor:

Depending on your vehicle, you may need to remove screws or clips holding the resistor in place. Carefully unplug the electrical connector attached to the resistor, then remove it from its housing.

Install the New Resistor:

Position the new resistor to ensure it aligns correctly with the mounting holes. Reattach the electrical connector, making sure it clicks into place securely.

Reassemble and Test:

Replace any panels or components you removed, reconnect the battery, and start the vehicle. Test the fan at various speeds to confirm that the replacement was successful.

Preventative Maintenance for the Holden Barina Fan Speed Resistor

Preventative maintenance is essential for ensuring the optimal performance of the fan speed resistor in your Holden Barina. This component regulates the speed of the cabin ventilation fans, contributing to a comfortable driving experience. Neglecting this part can lead to reduced airflow, overheating, or complete failure of the fan system.

Regular Inspections

Regularly inspect the vehicle’s electrical system to maintain your fan speed resistor. Look for signs of wear, such as frayed wires or corrosion on the resistor terminals. If you notice any discolouration or burnt spots, it’s crucial to replace the component promptly.

Clean the Connector

Dust and debris can accumulate around the Holden Barina Fan Speed Resistor connector, leading to poor electrical connections. Periodically cleaning this area with an electrical contact cleaner can prevent potential issues. Ensure the connector is secure and moisture-free, as dampness can cause corrosion over time.

Monitor Fan Performance

Pay attention to the fan’s performance. If you notice fluctuating speeds or the fan not operating, a failing resistor may be present. Addressing these symptoms early can prevent further damage and more expensive repairs.

Professional Maintenance

Consider scheduling regular check-ups with a qualified mechanic. They can perform a comprehensive electrical system diagnostic, ensuring that all components, including the fan speed resistor, function correctly. Preventative maintenance not only extends the life of the resistor but also enhances overall vehicle performance.

Upgrading Your Fan Speed Resistor

Upgrading your fan speed resistor can significantly enhance your vehicle’s heating, ventilation, and air conditioning (HVAC) system. The fan speed resistor controls the blower motor’s speed, allowing you to adjust airflow to your desired level. Over time, these resistors can wear out or fail due to heat and electrical stress, leading to issues such as a malfunctioning blower motor or the inability to adjust fan speeds. Upgrading to a high-quality resistor can restore optimal performance and improve your vehicle’s overall comfort.

Before starting the upgrade process, gathering the necessary tools and materials is essential. Typically, you will need a screwdriver, a multimeter for testing, and the new fan speed resistor. Ensure you have the correct part that is compatible with your vehicle’s make and model. It’s also a good idea to consult your vehicle’s service manual for specific instructions related to your model.

The first step in upgrading your fan speed resistor is disconnecting the vehicle’s battery to prevent electrical shock. Next, locate the old resistor, usually near the blower motor. Remove the necessary trim or panels to access it. Once you have reached the resistor, disconnect the electrical connector and remove the screws securing it in place. Carefully install the new resistor by reversing these steps. Be sure to connect the wiring securely and reassemble any panels or trim pieces you removed during the process.

After installation, reconnect the battery and test the new fan speed resistor by turning on your HVAC system. You should notice smoother operation and improved fan speed control. Regularly upgrading your fan speed resistor enhances comfort and extends the life of your vehicle’s HVAC system, ensuring a pleasant driving experience for years to come.

Conclusion

The TM Barina Fan Speed Resistor ensures a well-regulated cabin climate. Understanding how this component functions and being vigilant for signs of malfunction, you can address issues before they escalate. Diagnosing problems typically involves checking fuses, inspecting the resistor for visible damage, and testing its continuity with a multimeter. Replacing a faulty resistor requires basic tools and a few straightforward steps, making it a manageable DIY task for most vehicle owners—regular preventative maintenance includes inspecting the HVAC system for blockages and ensuring secure electrical connections.

FAQS

Q1: How often should I replace the fan speed resistor in my TM Barina?

A1: The replacement interval can vary based on usage and environmental conditions, but inspecting the resistor every 30,000 to 50,000 miles is generally recommended. Frequent inspections help in the early detection of potential issues, preventing unexpected failures.

Q2: Can I drive my car with a faulty TM Barina Fan Speed Resistor?

A2: Yes, you can drive your car with a faulty TM Barina Fan Speed Resistor, but it’s not recommended. A malfunctioning resistor can lead to uncomfortable cabin conditions and cause the HVAC system to overheat, potentially leading to more serious issues.

Q3: Is it possible to repair a faulty fan speed resistor instead of replacing it?

A3: While some fan speed resistors might be repairable, replacing them is usually more efficient and reliable. Repairing can be a temporary solution, but it often doesn’t address underlying issues like corrosion or wear, which might lead to future failures.

Q4: Do upgraded fan speed resistors improve air conditioning performance?

A4: Upgraded fan speed resistors do not improve air conditioning performance directly but can enhance the reliability and lifespan of the fan speed settings. They are often designed to handle greater electrical loads and resist overheating, which can be beneficial for maintaining consistent airflow.
